THE IDEAL SOLUTION FOR EPA REGULATIONS FOR AMALGAM SEPARATORS

On July 14th, 2017 the EPA’s final ruling became effective, requiring the use of an Amalgam Separator under the Clean Water Act to control discharge of mercury and other metals into public owned treatment works (POTWs) from dental practices.  (EPA Effluent Guidelines https://www.epa.gov/eg/dental-effluent-guidelines)

Made and engineered in Austria, the ECO II+ Amalgam Separator is the ideal solution to satisfy this EPA requirement. It is an upgraded version to the previous ECO II Amalgam Separator with enhanced features and even simpler installation.  Its compact design, zero maintenance and low cost make it the perfect addition to any dental office. Through sophisticated product design and advanced engineering, the ECO II+ is the finest amalgam separation system available worldwide. The ECO II family of amalgam separators is currently in use in over 5,000 dental offices in the U.S. and over 200,000 worldwide.

ECO II+ Amalgam Separator

Why the ECO II+ Amalgam Separator? The ECO II+ Amalgam Separator was engineered to be elegant, effective and simple. As the leading amalgam separator in Europe after 15 years of popularity there, the ECO II+ has recently taken the American market by storm as well.  The ECO II+ is known for its compact, easy-to-use design that is ideal for dental offices requiring amalgam separation.

BENEFITS INCLUDE

  • Even easier installation and higher flow rate than previous version
  • No disruptive vacuum loss! Engineered to ensure no loss of suction.
  • Low cost, saving dentists hundreds of dollars compared to competing systems
  • Easy installation and automated recycling options
  • Online documentation and e-mail maintenance alerts
  • Flexibility to work with almost any vacuum system

SYSTEM SPECIFICATIONS

  • ISO 11143 certified (exceeds ISO standards, achieving more than 99.3% filtration efficiency)
  • Pre-vacuum installation: up to 10 chairs and a tandem option for up to 20 chairs
  • Compact design: 8.7” x 8.7” x 13.8”
  • Works with wet and dry vacuum systems
  • Convenient installation
  • Easy replacement every 12 months or once full
  • Recycling certificates automatically sent to each office and available online 24/7
  • Made and engineered in Austria

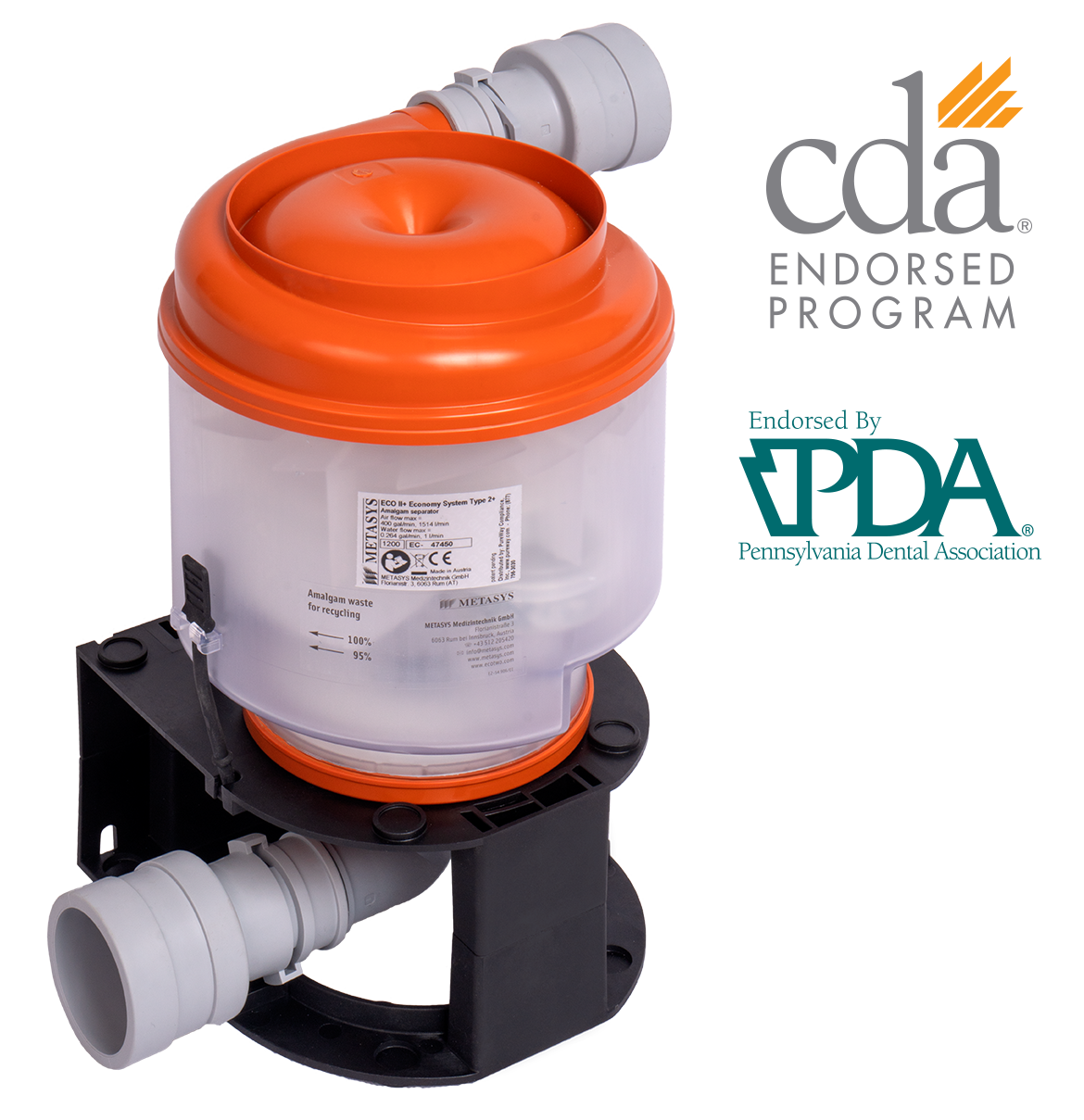

ECO II+ Endorsed
Authorized Resellers
Certified Installers



AMALGAM SEPARATOR - RESOURCES




Call our support team at (877) 765-3030 or e-mail support@pureway.com

Request a Quote from a PureWay Reseller

FREQUENTLY ASKED QUESTIONS

1. Does the ECO II+ system work with all vacuums?

Yes, the ECO II+ works with 99% of vacuum systems on the market. Don’t be deceived by rogue technicians that are trying to sell you another separator. The ECOII+ is compatible with 99.9% of vacuum systems on the market.  Please call for installation instructions or speak with one of our service tech supervisors for support when installing your ECO II+.

3. Where should the ECO II+ be installed?

If you have a dry vacuum system, install the separator after the water separator tank on the wastewater drain line. Make sure the ECO II+ is positioned below the tank to allow gravity to drain the water through the ECO II+ and out the wastewater pipe. For a Wet Vac or Wet ring, pump install the ECO II+ on the vacuum line before the pump.

5. What size vacuum or wastewater line is the ECO II+ compatible with?

Fittings included with the ECO II+ are compatible with ¾”, 1” and 1.5” vacuum or wastewater lines. However, the ECO II+ tandem unit is compatible with lines up to 2”.

7. Does the ECO II+ require maintenance?

There is no daily or weekly maintenance necessary. The only maintenance required for the ECO II+ is to check the fill line each month and to replace the canister after 12 months or when full. These requirements are regulated by the EPA.

9. How do I order an ECO II+?

Contact your trusted dental supply dealer to place your order. If your dealer does not carry the ECO II+, click on the link above "Authorized ECO II+ Dealers" for a list of distributors who carry the ECO II+.

2. Does the ECO II+ work on a Wet Vac and Dry Vac?

Yes, the ECO II+ works with both systems.

4. We have a central evacuation system, where should the ECO II+ be installed?

The ECO II+ or ECO II+ tandem is installed after the central evacuation system in the wastewater drain pipe. See the instruction manual for more details.

6. Does the ECO II+ system reduce suction?

No, the ECO II+’s superior engineering ensures sufficient water flow regardless of where it is installed and does not reduce suction or cut off water flow when full.

8. How do I get my certificates of recycling?

Two options. Register your system here and you will receive an e-mail with your certificate when you return your canister using the prepaid ECO II+ return mailing box and your canister is received at the treatment facility for recycling. The second option is to provide your e-mail address at the time you order and you will automatically be enrolled in the e-certificate program.  For more information scroll down to the compliance section.

10. Who regulates amalgam separation and what are my requirements?

Requirements for amalgam separation have be outlined and are regulated by the Environmental Protection Agency (EPA). A link to this regulation can be found on our resources page.



ECO II installation video

(Video is showing the previous ECO II version / please refer to your ECO II+ instruction manual for the upgraded and even simpler directions)

ECO II replacement video

(Video is showing the previous ECO II version / please refer to your ECO II+ instruction manual for the upgraded and even simpler directions)
