EPA Standards for Dental Amalgam Waste

Dental Effluent Guidelines Explained

pharmaceutical-med-img-2

BACKGROUND
The Environmental Protection Agency (EPA), Centers for Disease Control and Prevention (CDC), and Food and Drug Administration (FDA) have closely monitored and tested the effects of mercury and its use in the dental industry for many years. Since the early 1990s, these agencies have been researching the link between human and environmental health issues and mercury that originated in dental offices as dental amalgam [uh-mal-gum]. Dental amalgam is a dental filling material that contains a mix of 50% mercury, plus a powder containing silver, tin, copper, and other metals. It has been used for over 150 years to fill cavities caused by tooth decay in hundreds of millions of patients around the world (1).

Elemental mercury is the primary component of dental amalgam. Mercury is a naturally occurring metal in the environment and can exist in liquid, gas, or solid form when combined with other metals. Everyone is exposed to mercury through air, drinking water, soil, and food. The concern is one, how much mercury exposure is too much before becoming mercury poisoning, and two, are mercury levels increasing as a result of interactions with other elements in the environment (2)?

Mercury is released into the environment whenever a dentist removes an old amalgam filling from a cavity, or when excess amalgam is removed during the placement of a new filling. There is a concern that low levels of vapor can be inhaled and absorbed by the lungs even years after an amalgam filling is placed in a patient’s mouth, potentially causing long-term damage to the brain and kidneys. Due to the lack of scientific data surrounding this concern, little has been done over the years to limit the use and/or disposal of dental amalgam.

In 2009, the FDA issued a final rule that classified dental amalgam as a Class II device accompanied by a document that designates special controls for dental amalgam. The Agency for Toxic Substances and Disease Registry (ATSDR) and the EPA have established mercury exposure levels aimed at protecting the most mercury-sensitive populations from the adverse effects of mercury vapor, namely pregnant women, developing fetuses, and all children under 6 years old (3).



EPA Final Ruling

On December 16, 2016, the EPA signed off on a final rule promulgating technology-based pretreatment standards under the Clean Water Act to control discharges of mercury and other metals into publicly owned treatment works (POTWs) from dental practices(4). After a brief hold on this ruling due to the implementation of a new administration, the ruling publication date was solidified on June 14th, 2017 with an effective date of July 14th, 2017. These new standards require dental practices that place or remove dental amalgam to control mercury discharges into POTWs through the use of an amalgam separator, which the EPA has identified as the best available technology to effectively capture dental amalgam before it reaches the wastewater, at an approximate average annual cost of $800 per office (4).

The EPA developed a regulation based on a separation and continual maintenance model that achieves a 95.0% total reduction of total mercury from amalgam process wastewater.
Compliance with the pretreatment standard for new and existing offices will be met by completing the following tasks:

  • Install and properly maintain an amalgam separator that is either an ISO 11143:2008 certified or an ANSI/ADA Standard No. 108 with a separation rate of 95%
  • Implement the following Best Management Practices to prevent mercury discharges that may bypass the amalgam separator:
    1. Properly collect and recycle “scrap” amalgam waste including chairside traps, vacuum pump filters, spent amalgam capsules, and extracted teeth containing amalgam (e.g., use a PureWay Amalgam Recycling System)
    2. Clean chairside traps using only non-bleach or non-chlorine cleaners
      • Water Line Cleaners must have a pH of 6-8

EPA'S FINAL RULE WENT INTO EFFECT 30 DAYS AFTER PUBLICATION IN FEDERAL REGISTER, WHICH IS JULY 14, 2017.  THE DATE FOR COMPLIANCE FOR THE DENTIST WAS JULY 2020.



Exemptions to Ruling

All dental offices that place or remove amalgam are now required to implement an amalgam collection, separation, and recycling program. However, the EPA has identified exemptions to the new standards if less than 5% of activity involves amalgam.

Exempted practices include:

  • Mobile Dental Units
  • Dental Offices where the practice "consists only" of the following specialties:
    • Oral Pathology
    • Oral and Maxillofacial Radiology
    • Oral and Maxillofacial Surgery
    • Orthodontics
    • Periodontics
    • Prosthodontics

It is understood that a number of dental offices may already have an amalgam separator in place, whether to comply with existing state or local amalgam regulations or because they voluntarily installed an amalgam separator. According to the new EPA ruling, dental offices with existing amalgam separators will not be penalized as long as the separator is certified to remove 95% of total mercury. The EPA will not require existing separators that still have to remain useful life to be retrofitted with a new separator, (1) because of the additional costs
incurred by dental facilities that proactively installed an amalgam separator ahead of the EPA’s proposed requirements, and (2) because of the additional solid waste that would be generated by disposing of the existing separators.

As long as offices with existing separators continue to properly operate and maintain the separator and comply with BMPs and recordkeeping requirements, these offices will be deemed in compliance with the new ruling until ten years from the effective date of the final rule.



Compliance and Maintenance Requirements For Dental Offices

Dental offices that place or remove amalgam fillings are required to install and properly maintain an amalgam separator. Depending on the brand, a separator can be purchased from virtually any supply vendor or purchased directly from the manufacturer. Whatever separator is purchased; it is important that the system is promptly installed in order to comply with the new regulations. Proper documentation management is an integral part of this program to ensure that (1) a certificate of recycling is kept on file, and (2) a replacement canister is purchased once the marked fill line is reached or 12 months from the date of installation, whichever occurs first.

ecoii amalgam separator

The regulations do not specify a minimum amount of time needed before replacing a used filter/canister, but the regulations do state and mandate that the manufacturer's guidelines for replacement be followed. Since each amalgam separator is required to conduct testing for the ISO certification based on a 12-month replacement maximum, most amalgam separators are required to be replaced every 12 months or once the canister is full. This not only ensures that the separator is functioning as certified but also prevents the separator from moving into bypass mode, which would allow the wastewater to flow unrestricted or filtered directly into the separator. The EPA recommends that an amalgam separator like PureWays ECOII amalgam Separator should be monitored monthly to ensure the canister is replaced per the manufacturer’s instructions for use, and that a backup canister is kept on-site to ensure a proper replacement is conducted at the appropriate time.

Most amalgam separators are compatible with both large- and small-capacity dental offices and can be used with dry vacuum or wet vacuum systems. That being said, it is best to check with the manufacturer or distributor to make sure the right amalgam separator system is purchased.

More about Amalgam Separators

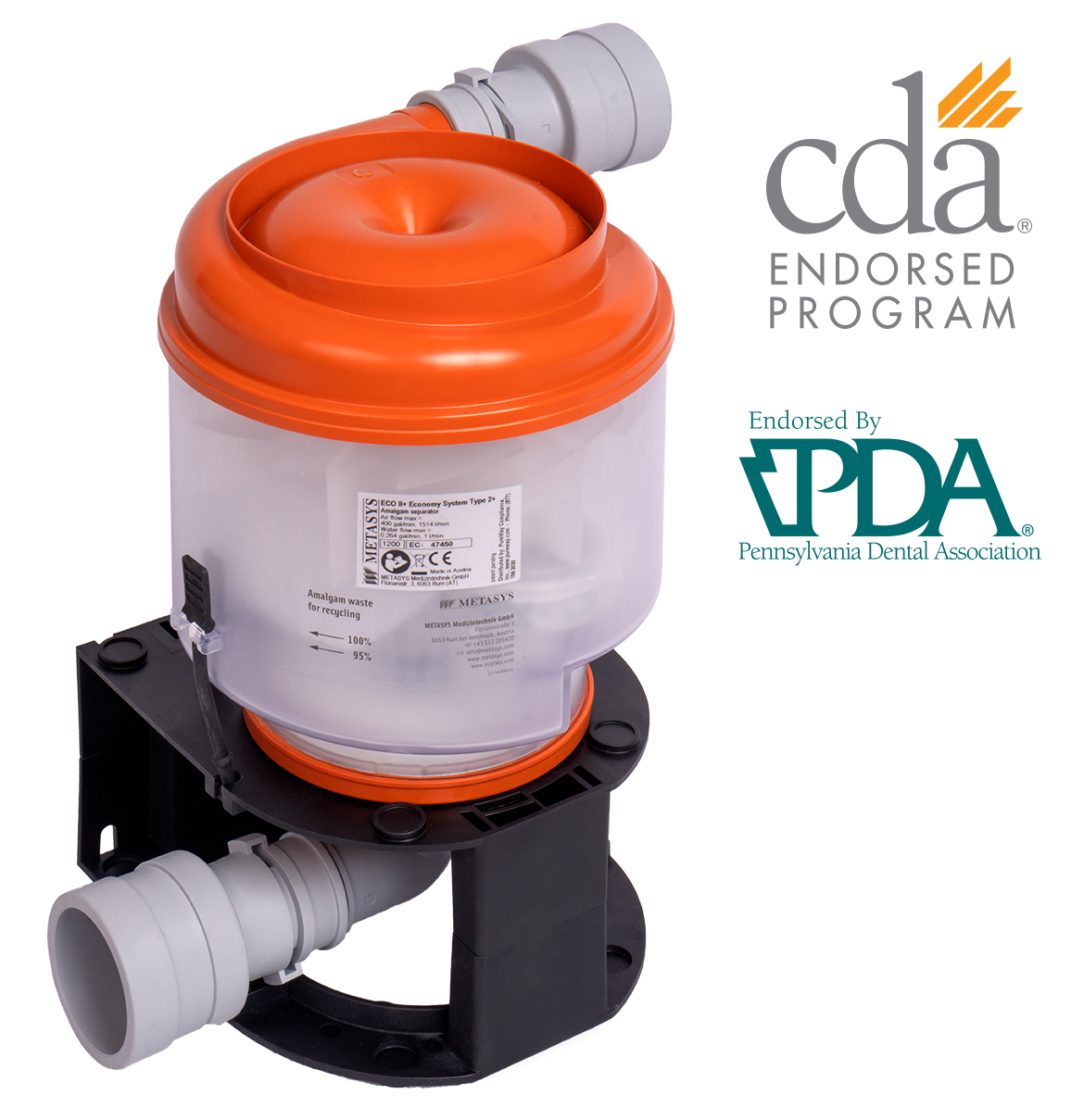

ECO II+ amalgam separator

The amalgam separator is installed before the main vacuum line intersects with the plumbing in other parts of the building, and separates solids before reaching the wastewater. The typical plumbing configuration in a dental office involves a chairside trap for each chair and a central vacuum pump with a vacuum pump filter. Chairside traps and vacuum pump filters remove approximately 78% of dental amalgam particles from the waste stream(5).
These chairside traps cannot be cleaned or washed; they must be recycled to ensure that amalgam particles are properly managed.

Most separator designs rely on the force of the dental facility’s vacuum to draw wastewater into the separator. These separators are estimated to reduce the discharge of metals to POTWs by at least 8.8 tons per year, about half of which is comprised of mercury.


Most amalgam separators use sedimentation processes to filter solids. The high specific gravity of amalgam allows effective separation of amalgam from suspension in wastewater. The weight of amalgam is 2x – 3x that of most sediments found in dental wastewater, which allows the particles to separate and settle at the bottom of the canister. After the solids settle, the wastewater is either pumped out, decanted during servicing, or is pulled through the separator. No matter which separator is chosen, it is imperative that it meets the ISO 11143 standard which certifies the proper removal of 95.0% or more of total mercury(5).

Sources:

1.  “About Dental Amalgam Fillings.” About Dental Amalgam Fillings. Food and Drug Administration, 2009. Web. 21 Nov. 2016.
2.  “Dental Amalgam: A Health Risk?” Is Dental Amalgam Safe? Addressing the Risks of Mercury in Amalgam Fillings. Colgate, 12 May 2014. Web. 21 Nov. 2016.

3. Adjodha, Michael E. “Class II Special Controls Guidance Document: Dental Amalgam, Mercury, and Amalgam Alloy - Guidance for Industry and FDA Staff.” Class II
Special Controls Guidance Document:

4. “ Effluent Limitations Guidelines and Standards for the Dental Category - Final Rule - Pre-publication Version, 40 CFR Parts 403 and 441 (December 15, 2016).

5. “Effluent Limitations Guidelines and Standards for the Dental Category - Final Rule - Pre-publication Version, 40 CFR Parts 403 and 441 (December 15, 2016).
